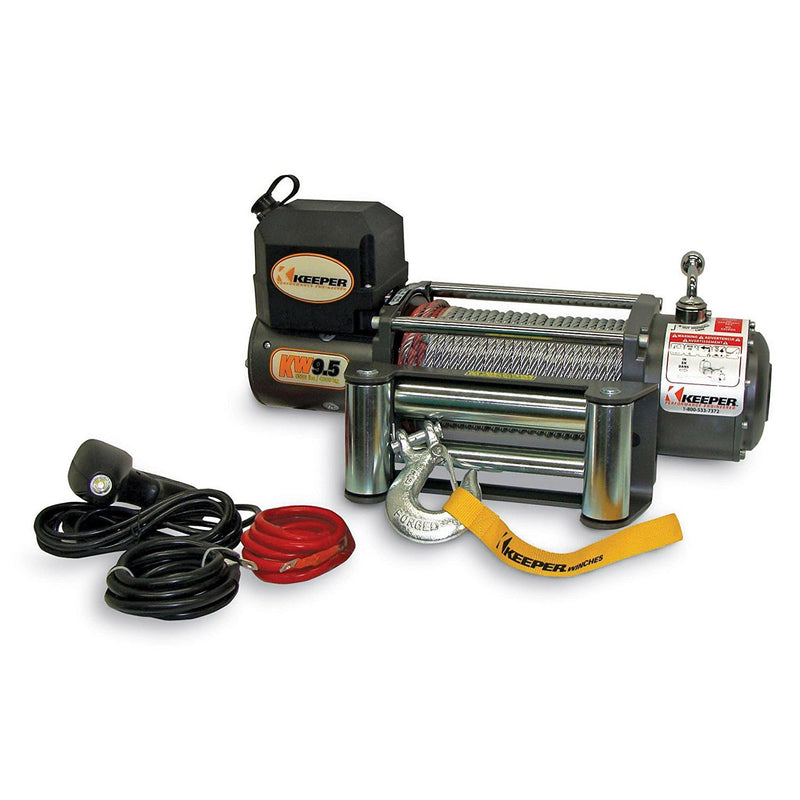

Keeper 9500 lb Electric Winch

KeeperSKU: KW95022

Features:
  • 9500 lbs. Rated Single Line Pull Winch
  • Free Wheel Clutch
  • High Speed - 3 Stage - Planetary Gear Box
  • 5.5 HP Series Wound 12V DC Motor
  • Automatic Full Load Holding Brake
  • Power In and Out
  • 100' x 21/64" Wire Rope with Thimble
  • Heavy Duty 4 way Roller Fairlead
  • Warning Paint On Beginning and End of Wire Rope
  • Removeable Clevis Hook with Latch
  • Hand Saver Strap
  • Heavy Duty Sealed Solenoid Pack
  • Integrated Heavy Duty Sealed Switching
  • Hand Held Switch on 15' Lead with High Density LED Work Light
  • Circuit Breaker Protected
  • Battery Leads - 2 GA x 72"
  • Circuit Breakers

The Keeper KW95022 Winch features a limited lifetime warranty.

Keeper Winch (KW 9.5 Specifications)
Keeper Winch KW 9.5 Part Number KW95022
Keeper Winch KW 9.5 Rated Line Pull 9,500 lbs, 4,309 Kg
Keeper Winch KW 9.5 Motor - Series Wound 5.5 HP 12V DC
Keeper Winch KW 9.5 Control Hand Held Remote on 15' Lead with built-in High Density Light
Keeper Winch KW 9.5 Switching High Duty Cycle Sealed Solenoid Pack
Keeper Winch KW 9.5 GearTrain High Efficiency 3-Stage Planetary Gear Set
Keeper Winch KW 9.5 Gear Reduction 218:1
Keeper Winch KW 9.5 Clutch (Freespooling) Sliding Ring Gear
Keeper Winch KW 9.5 Brake Mechanical-Automatic Cam Activated
Keeper Winch KW 9.5 Wire Rope 100' (30.48 M) of 21/64ths (8.3 mm) Diameter galvanized Wire Rope with Looped Thimble, Latched Clevis Hook and Red Warning Area
Keeper Winch KW 9.5 Drum Diameter/Length Diameter - 2.5" (63.5mm) / Length - 8.8" (224mm
Keeper Winch KW 9.5 Fairlead 4 way roller
Keeper Winch KW 9.5 Battery Leads 2 Gauge, 72" (1.83 M)
Keeper Winch KW 9.5 Battery Minimum 650 CCA
Keeper Winch KW 9.5 Application General Utility Load Recovery/Trailer, Truck, Tractor, Equipment
Keeper Winch KW 9.5 Finish High Gloss grey Powder Coat over Undercoating
Keeper Winch KW 9.5 Weight 94 lbs / 43Kg
Keeper Winch KW 9.5 Warranty Limited Lifetime
Keeper Winch KW 9.5 UPC Code 0 51643 35129 5
Keeper Winch KW 9.5 l 2 of 5 Code 10051643351292
Keeper Winch KW 9.5 Box Dimensions 23.45"W x 12.96"D x 21.35"H

12V DC Performance - Keeper KW9.5 Winch

Line Pull Lbs (kg) Line Speed FPM (MPM) Motor Amp Draw
0 28.3 (8.6) 80
2,000 (907) 16.6 (5.1) 160
4,000 (1814) 12.2 (3.7) 220
6,000 (2722) 9.8 (3.0) 260
8,000 (3629) 8.1 (2.5) 310
9,500 (4310) 4.2 (1.3) 360

Maximum Line Pull and Wire Rope Capacity By Layer - Keeper KW 9.5 Winch

Layer Line Pull lbs (kg) Rope on Drum ft (m)
1 9500 (4309) 16.2 (4.9)
2 8075 (3662) 39.0 (11.9)
3 6864 (3113) 68.2 (20.8)
4 5834 (2646) 100.0 (30.5)
Rolling Load Capacities (1st Layer)
Slope*
Rated Line Pull ** 10% (4.5°) 20% (9°) 40% (18°) 60% (27°) 100% (45°)
2000 lbs 10500 6803 4308 3331 2175
2500 lbs 12563 8503 5388 4160 3213
3000 lbs 15075 10251 6428 4991 3854
4000 lbs 20100 13597 8643 6655 5138
9500 lbs 48450 32400 20900 16150 13600

*Slope: a one (1') rise over ten (10') feet in length equals a GRADE of 10%. A 10% Grade is equal to a 4.5° incline angle. Therefore a 100% grade equals a 45° angle of incline.

**Rated Line Pull - The non-rolling load a winch can pull on the bottom layer "Bare Drum".
