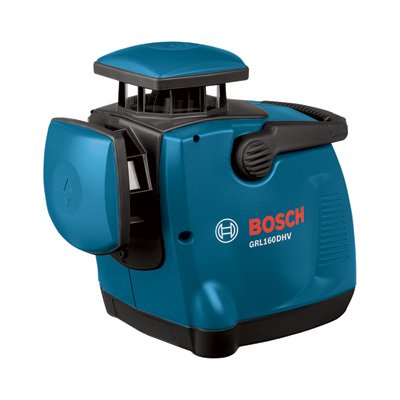

Bosch GRL 160 DHV Self-Leveling Dual Axis Laser, GRL-160-DHV


The GRL160DHV Features: -Beam customization 5-lengths (3, 10, 30, 45, 90, and 120 degrees) and three rotation speeds (350, 600, and 1200 RPM) settings for diverse application and lighting conditions.-Easily calibrated in the field to minimize down time.-Patented Dual-Axis self leveling rotary laser has separate horizontal and vertical lasers for use together or individually for both indoor and outdoor applications.-Smart pendulum leveling system self-levels, senses and indicates out-of-level condition. Specifications: -Accuracy: 1/4 in @ 100-ft (Vertical), 1/8 in @ 100 ft (Horizontal).-Range: 1000 ft.-Laser Wave : 635 nm.-Power Source: (4) ''D'' Batteries.-Includes: Batteries, Carrying Case, Laser Glasses, Magnetic Target, RCR2 Remote Control/Receiver, Rod Bracket, Wall Mount. Additional Info: DUAL AXIS ROTARY LASER W/ FULLY AUTO LEVELING Cost is for a min. order of 1/KT UNSPSC: Testing Approvals: Unit Sold is in measure of 1 Kit

  • Patented dual-laser system - separate horizontal and vertical lasers for use together or individually for both indoor and outdoor applications
  • Smart Pendulum Leveling System - Self-levels, senses and indicated out-of level condition, locks when switched off
  • Beam Customization - 6-lengths (0-Degree, 3-Degree, 10-Degree, 30-Degree, 45-Degree, 90-Degree, and 120-Degree) and 3 rotation speed (350, 600, 1200 RPM) settings for diverse application and lighting conditions
  • Easy Field Recalibration - Maintain accuracy and prevent downtime
  • Limited 3-Year warranty
  • Class IIIa laser product, <5mW power output
Precision Made Easy

Thanks to the GRL160DHV's host of user-friendly features you'll be sure to get easy, accurate results every time you use it. To start, a Class IIIA laser diode provides a measuring range of up to 1,000 feet, with accuracy up to 1/8 inch at 100 feet (horizontal) and up to 1/4 inch at 100 feet (vertical).

A patented dual-laser system offers separate horizontal and vertical lasers that can be used together or individually for both indoor and outdoor applications. To ensure accuracy and ease of use, a smart pendulum leveling system senses and self corrects out-of-level condition and locks when the unit is switched off. For further convenience, easy field recalibration saves you time on the job while maintaining accuracy.

Adjustable Laser Beams for Versatility

What's more, patented microfine plumb alignment lets you make life/right/vertical beam adjustments without repositioning the unit. And with six beam lengths--0 degrees, 3 degrees, 10 degrees, 45 degrees, 90 degrees, and 120 degrees--and three rotation speeds--350, 600, and 1,200 RPM--you'll be able to handle diverse applications in a variety of lighting conditions.

Laser Receiver with Built-In Remote and 500-Foot Range

The GRL160DHV features a

RCR1 laser receiver with built-in radio-frequency remote control and 500-foot RF range. No direct line of sight is required to use the remote, so even obstructions won't get in the way of transmission.

For added convenience, LCD displays are located on both sides of the RCR1 for easy beam location readouts. Best of all, the person doing the work is the one to receive the readings, even over large areas.

Built to last, the GRL160DHV is backed by a three-year limited warranty.

One of Bosch's Most Innovative Measuring Tools

The GRL160DHV is part of Bosch's new line of compact, user-friendly, multipurpose measuring and layout tools. These tools are designed for optimum precision, so your project stays on course from start to finish. They level, align, measure, and detect--all with an innovative feature set that allows for effortless one-person operation, even when measuring walking-out distances.

What's in the Box

GRL160DHV, RCR1 remote control/receiver, pair of laser glasses, magnetic target, rod bracket, wall mount, four 'D' batteries, one nine-volt battery, and carrying case.

Sale Price$899.95

Shipping calculated at checkout

Pickup currently unavailable at 359 Mount Zion Rd.

Product Weight 8 lb
